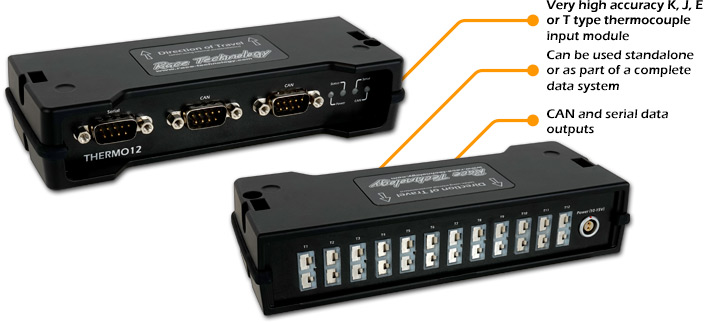

THERMO12 - 12 channel thermocouple module

Product Datasheet


The THERMO12 is designed for easy integration into a SPEEDBOX Mini/DL2 system. With stacking cases, aligned connectors and power to the unit supplied through the Serial/CAN connections (not requiring a separate power cable when part of a system).

THERMO12 is available for use with either K, J, E or T type thermocouples, the thermocouple type must be specified when ordering.

Data is output over Serial and CAN ports, with a fully configurable CAN output. The supplied configuration software allows individual input smoothing and filtering to be applied, as well as data rates for each input. The data is mapped the to the desired temperature channel, for easy identification during analysis. Full software suite supplied: Configuration, live data monitoring and comprehensive data analysis.
