DASH2 - Installation Loom Kit (Out of stock)

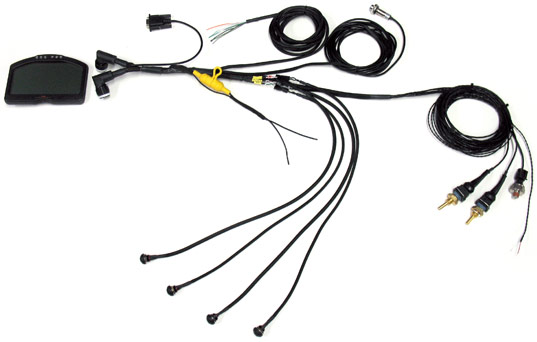

the DASH2 as standard is supplied with pre-wired connectors, ready for wiring into a vehicle. However a more complete wiring loom kit is also available for the DASH2 to simplify and speed up installation. The loom kit contains sensors and buttons pre-wired ready for physical installation with the absolute minimum of additional connectors.

The standard loom kit features:

• Wheel speed sensor

• Water temperature sensor

• Oil pressure sensor

• Oil temperature sensor

• Extended (5m) connections for fuel level sender

• 4 x pre-wired buttons for screen/menu operation on DASH2

• Inline fuse for power input protection

• Extended (2.5m) connections for warning light connections

• Standard serial d-type connection

Temperature sensor thread options

Temperature sensors are available in either M12 x 1.5mm OR 1/8th NPT

Pressure sensor thread options

The standard sensors feature a 1/8" NPT male thread - Adaptors are available to convert to different thread types

Wheel speed sensor options

long body (57mm body length, 40mm thread) OR short body (42mm body length, 31mm thread)
